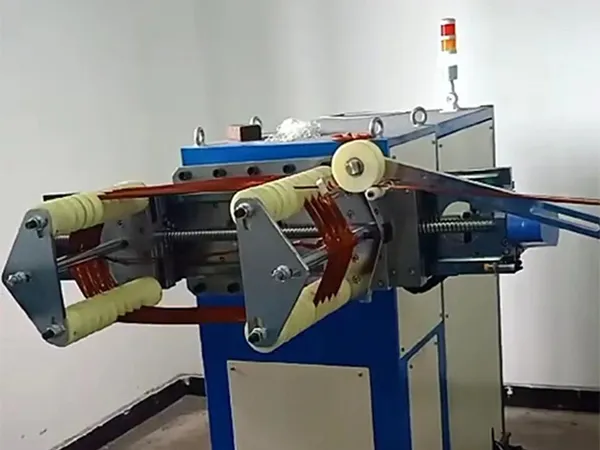

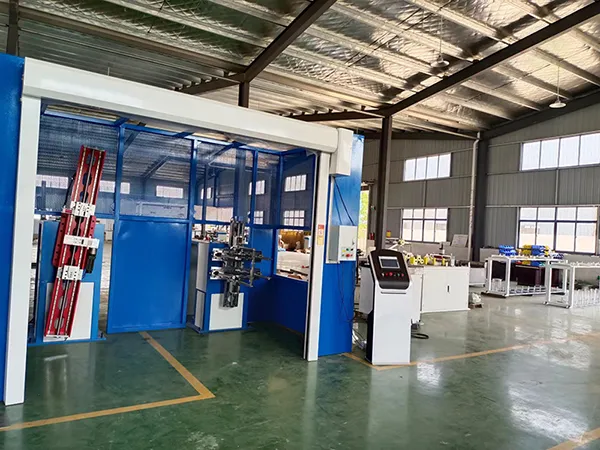

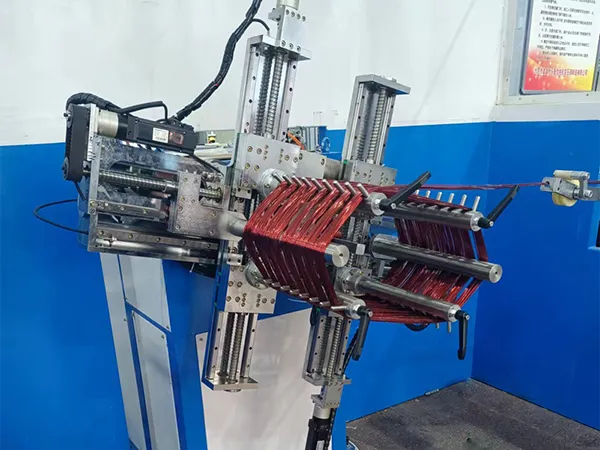

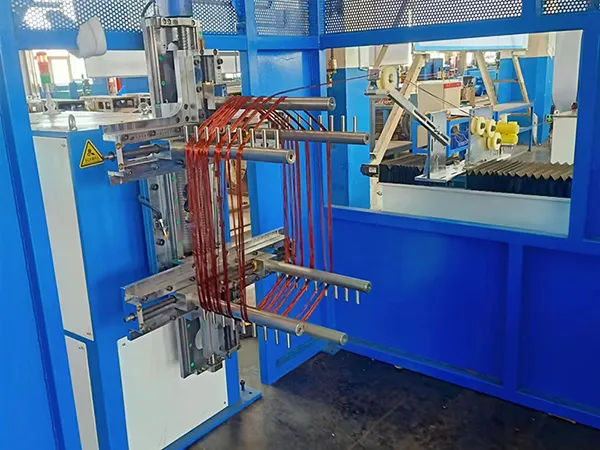

Motor coil winding machine is widely used for the production of large and medium-sized motor stator coils. It is equipped with an automatic interlocking, with a floating device for automatic compaction and straightening of the copper wire, which also maintains a controlled and constant conductor tension. In addition, the electrical components used in this coil winding machine are provided by renowned suppliers to ensure the long-term stable operation of the equipment.
| Traction line length | 100-600mm |
| Conductor width | 0.2-3.5mm |
| Conductor thickness | 1-36 |
| Coil length | 300-950mm |
| Coil width | 200-600mm |
| Winding bobbin | R20, R25 |
| Slot number | 4-10 |
| Winding speed | 5-100r/min |
| Counting capacity | 999 |
| Maximum load | 1400kg |
Have a question or need advice? Our team has the expertise to recommend the right solution.
Xianglong is a company engaged in R&D, manufacture and supply of coil manufacturing equipment including loop winding machine, coil forming machine, coil taping machine, coil press, vacuum pressure impregnation system, vacuum drying equipment, motor coil dismantling machine and balancing machine. These motor coil machines have found extensive applications in the production processes for high voltage motors, wind generator motors, steam turbine generators, electrical appliance motors, permanent magnet motors, transformers, new energy motors and other products.
For the filed of automotive manufacturing, highly sensitive components such as sensors, electronics and ignition coils are often exposed to extreme conditions: ambient temperatures from -40 to +60 degrees Celsius, and up to 180 degrees Celsius in the motor and powertrain range.
For the integration of electronic modules, insulation between the modules is crucial. Our company provides the electronics industry with well-performed vacuum pressure impregnation equipment to ensure that your electronic products have long-lasting insulation performance.
The electrical industry usually produces valves or switches controlled by motors. Therefore, the quality of motors directly affects the efficiency and safety of production and processing.
