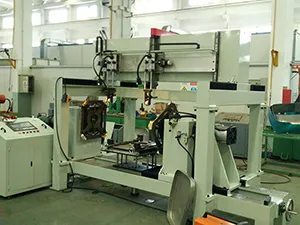

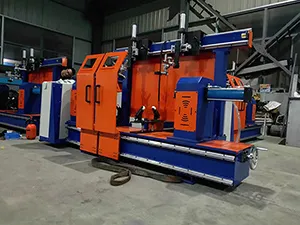

Body of fuel tank welding machine is made of following parts:

• Base and bed: a support frame to bear the weight of the machine;
• Main mandrel: used to support the workpiece, to meet the different requirements of product welding;
• Welding trolley: used for welding to ensure that the welding torch smooth traveling and welding.

• A servo motor is adopted to ensure precise, reliable, stable movement and fast return speed.
• Welding speed can be stepless adjusted by servo motor control.
• The 2-axis welding angle adjusting device can adjust and lock different welding angles to meet the requirement.
• The movement, lifting and reset of welding torch is controlled automatically by pneumatic cylinders for stable and reliable workpiece loading and unloading.
• The clamping machine can be operated automatically, manually and semi-automatically.
• The workpiece weld seam is corrected by infrared light source. First manually check whether the longitudinal seam is coincident with the infrared ray, make sure that it is coincident and then press start clamping, which ensures the accuracy and flatness of the weld seam.
• Fuel tank welding machine adopts PLC, which equipped with monitor, and has 1-year warranty.
• The main frame is made of steel plate that is welded and subjected to aging treatment.
• All parts are coated with antirust primer after shot blasting and descaling, or pickling and phosphating, and then plastered with topcoat to enable a neat and beautiful appearance.
• It will be delivered with machine accessories, common tools, operating instructions, and electrical diagrams, which are compatible with the machine.
