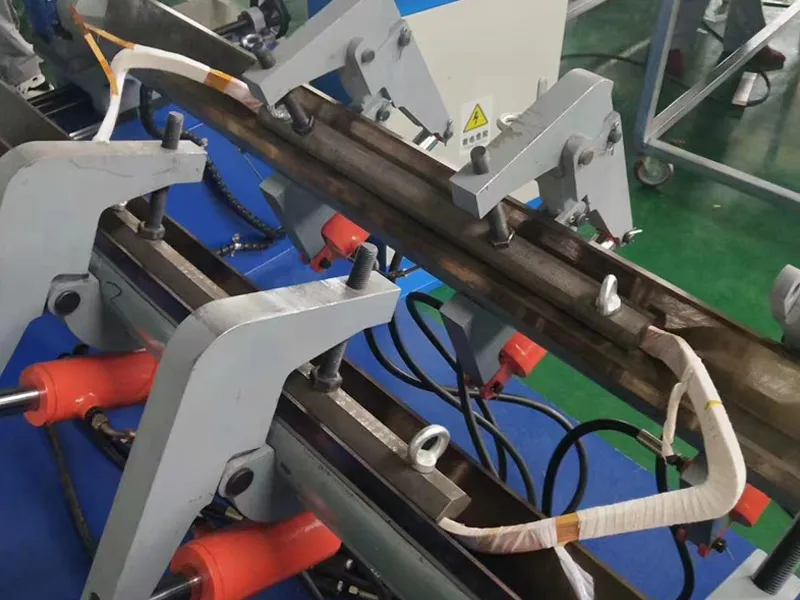

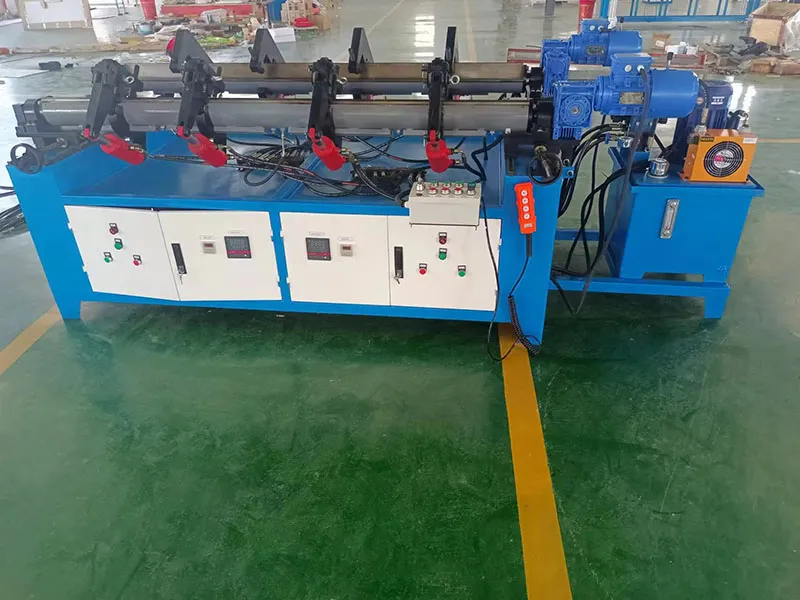

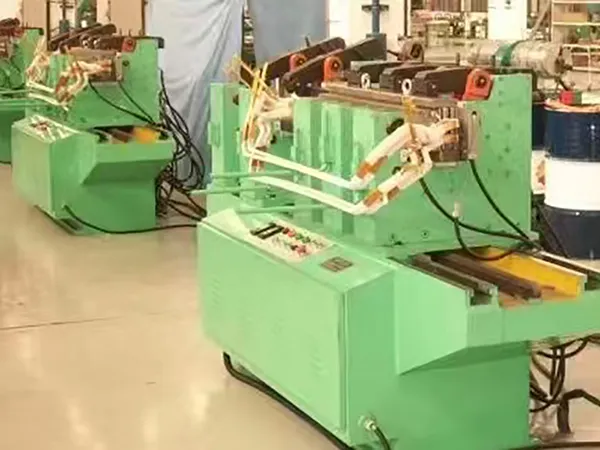

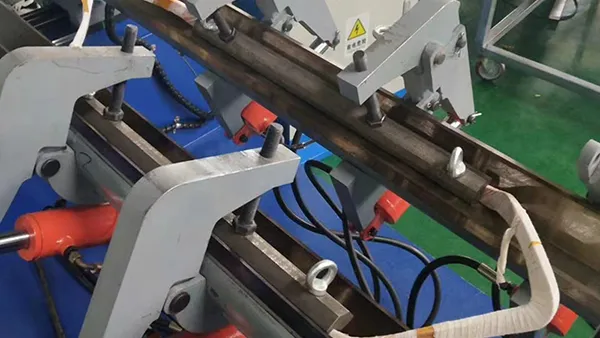

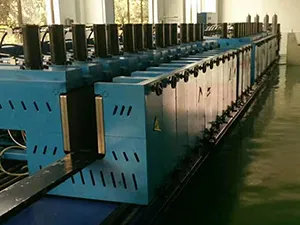

Coil press is mainly used for shaping and coking of coils for large and medium-sized motors, or coils with large cross-section. It is equipped with four auxiliary cylinders, two sets of pressing moulds and a rotation stand. In terms of heating, it has a highly accurate constant temperature heating system, the mould heating area needs no more than 1 hour to warm up from room temperature to the set temperature, which effectively reduces the start-up time. At the same time, the parameters such as temperature, time and so on can be set according to your needs, which can be continuously adjusted within the temperature range of 100 ℃ -220 ℃. To ensure the safety of the equipment and operator, the coil hot press is also equipped with a timing alarm system.
| Coil linear length | 230-3000mm |
| Effective heating length | 3200mm |
| Adjustable opening range | 190-1250mm (continuous adjustment) |
| Rotation angle | 0°-140° |
| Roughness | 1.6um |
| Flatness | 0.1mm |
| Perpendicularity | 0.5° (“L” shaped work surface 90°-90.5°) |
| Electric heating power | 18 kilowatt |
| Temperature | 140℃-220℃ |
