Vacuum Pressure Impregnation System
Vacuum Pressure Impregnation System Vacuum Pressure Impregnation System Vacuum Pressure Impregnation System Vacuum Pressure Impregnation System

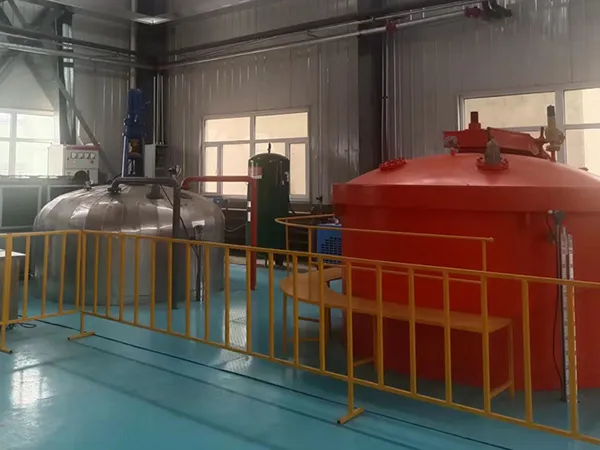

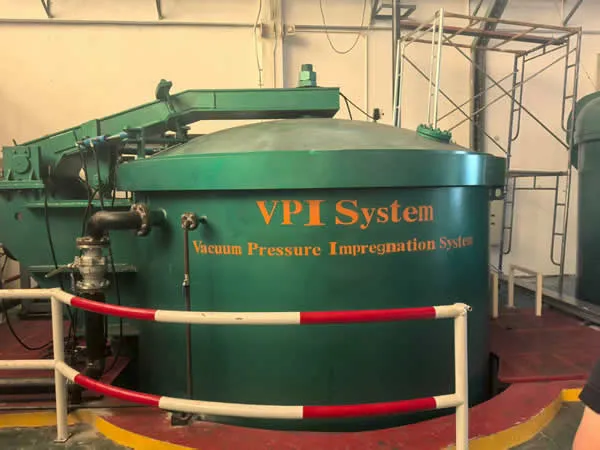

Vacuum Pressure Impregnation System

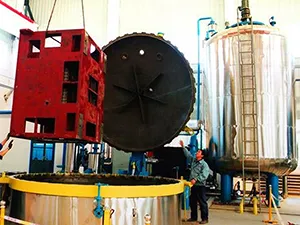

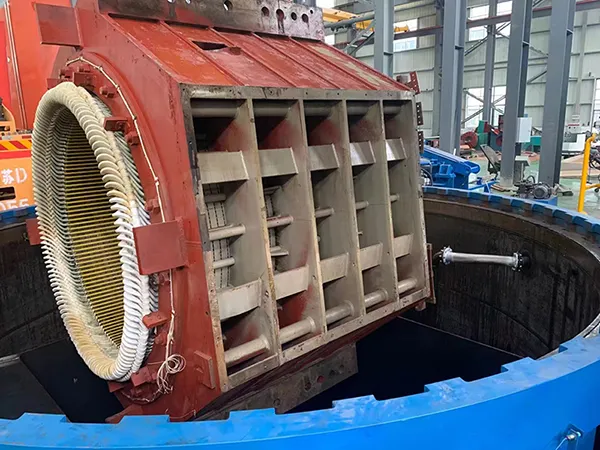

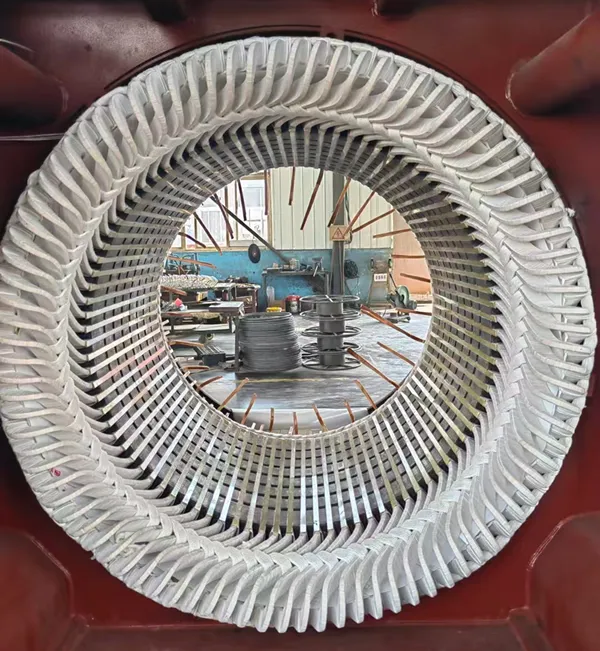

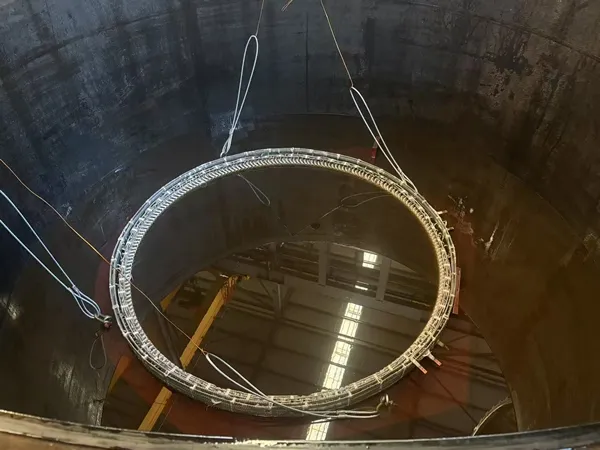

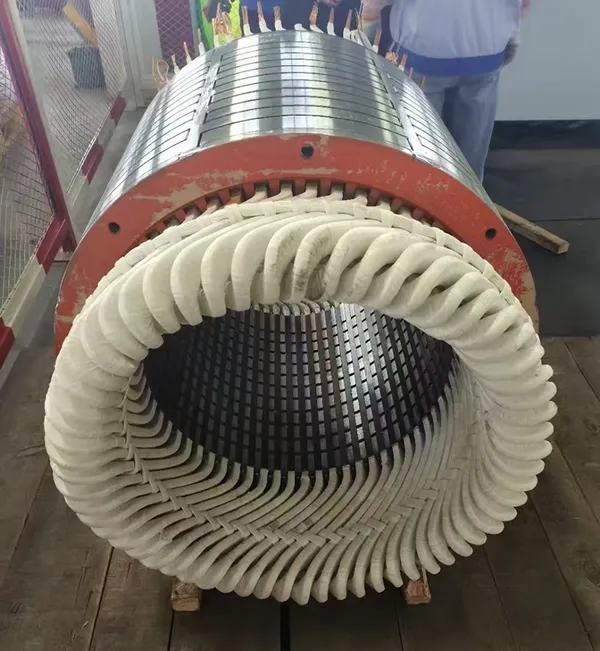

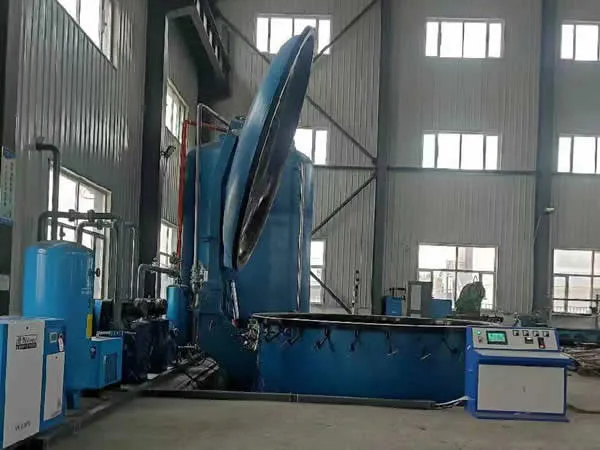

Vertical impregnator for complete insulation of motor wound components

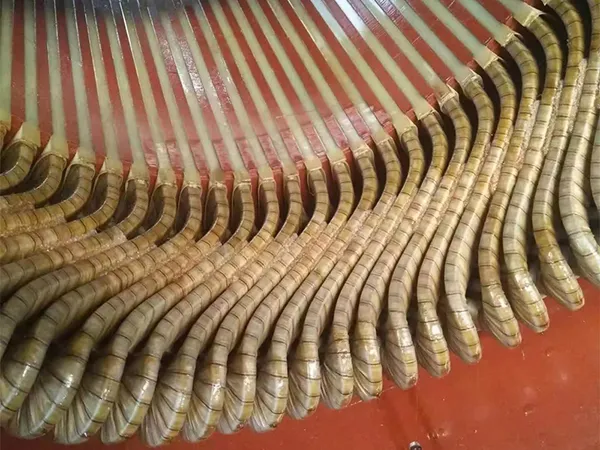

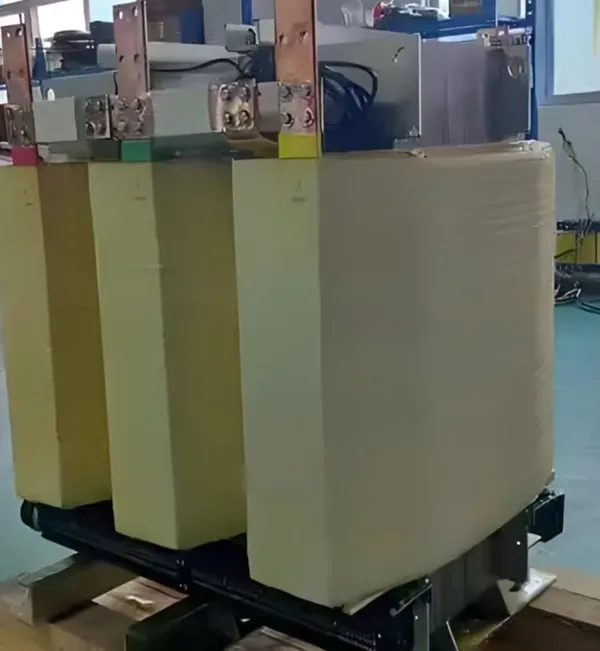

Vacuum pressure impregnation system is the key equipment for the insulation treatment of high-voltage motors, special transformers and explosion-proof motors, generators, traction motors and other electric components. Thanks to the process of impregnation with high vacuum first and then adding pressure, this VPI system enables the impregnating agent quickly and thoroughly penetrated into the workpieces, which improves the mechanical strength, insulating strength, moisture-proofing and mildew-proofing properties of the workpieces.

request a quote
Specifications
Model Nominal diameter of tank Nominal volume of tank Working vacuum Working pressure Power Floor area (W×L)
VPI-700 700mm 0.46m³ 20-5000Pa 0.1-2.0MPa 7kW 1800×3400mm
VPI-900 900mm 0.94m³ 20-5000Pa 0.1-2.0MPa 15kW 2100×3400mm
VPI-1000 1000mm 1.74m³ 20-5000Pa 0.1-2.0MPa 22kW 2100×3400mm
VPI-1200 1200mm 1.92m³ 20-5000Pa 0.1-2.0MPa 27kW 2200×4500mm
VPI-1400 1400mm 3.85m³ 20-5000Pa 0.1-2.0MPa 27kW 2400×4800mm
VPI-1600 1600mm 4.47m³ 20-5000Pa 0.1-2.0MPa 27kW 3200×5400mm
VPI-1800 1800mm 6.65m³ 20-5000Pa 0.1-2.0MPa 33kW 3800×6900mm
VPI-2000 2000mm 8.78m³ 20-5000Pa 0.1-2.0MPa 35kW 4500×7800mm
VPI-2500 2500mm 16.50m³ 20-5000Pa 0.1-2.0MPa 40kW 4900×8500mm
VPI-2800 2800mm 22.17m³ 20-5000Pa 0.1-2.0MPa 45kW 5800×9400mm
VPI-3000 3000mm 26.49m³ 20-5000Pa 0.1-2.0MPa 45kW 6600×11400mm
VPI-5000 5000mm 49.86m³ 20-5000Pa 0.1-2.0MPa 60kW 9600×13500mm
