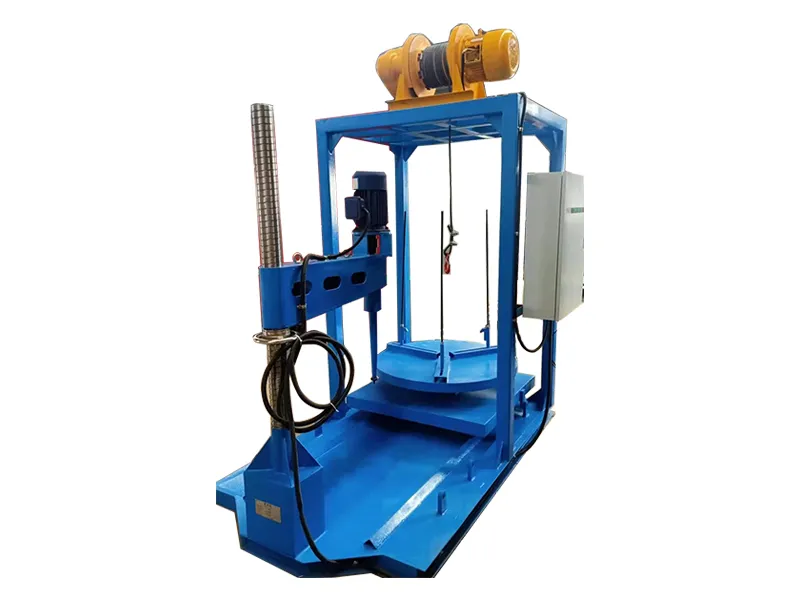

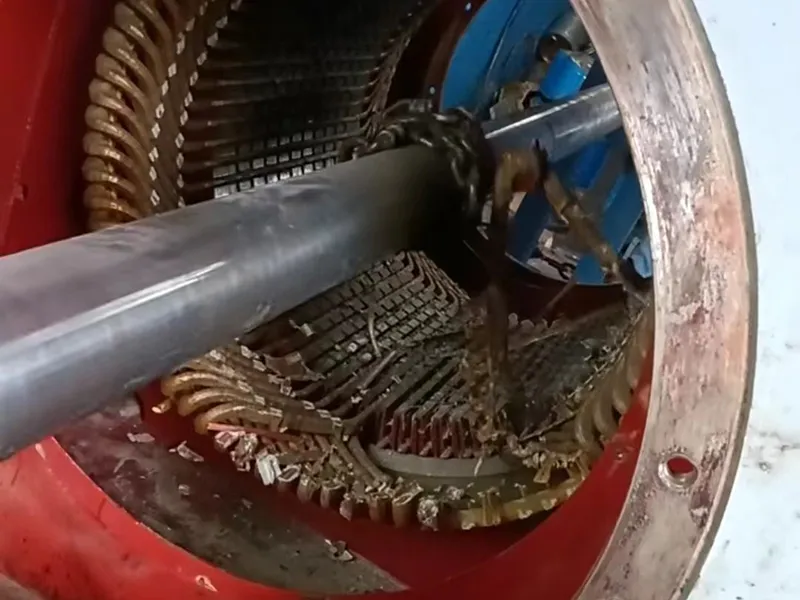

This hydraulic horizontal coil dismantling machine for high-voltage motor integrates the two functions of electric cutting and dismantling, and adopts new dismantling tool with hydraulic traction. This motor coil dismantling machine is suitable for all kinds of VPI large motor coils, entirely or partially damaged small and medium-sized motor coils, and hot-pressing coils. It is easy to operate with fast running speed, and will not damage the iron core and motor surface during the process, which is the ideal equipment instead of electric pickaxe to remove the wires.
| Model | Internal dimensions (L×W×H) | Capacity | Voltage | Frequency | Heating power | Temperature uniformity | Weight |
| XHH | 1200×1500×1000mm | 200kg | 380V | 50HZ | 2.2kW | ±2.5 | 1.1t |
| XHH | 1500×1800×1600mm | 300kg | 380V | 50HZ | 3kW | ±2.5 | 1.8t |
| XHH | 2200×2000×2200mm | 600kg | 380V | 50HZ | 5.5kW | ±2.5 | 2.1t |
| XHH | 2500×2200×2500mm | 1200kg | 380V | 50HZ | 7.5kW | ±2.5 | 2.9t |
| XHH | 2800×2500×2500mm | 2300kg | 380V | 50HZ | 11kW | ±2.5 | 3.8t |
| XHH | 5200×4000×3000mm | 5200kg | 380V | 50HZ | 15kW | ±2.5 | 8.7t |
