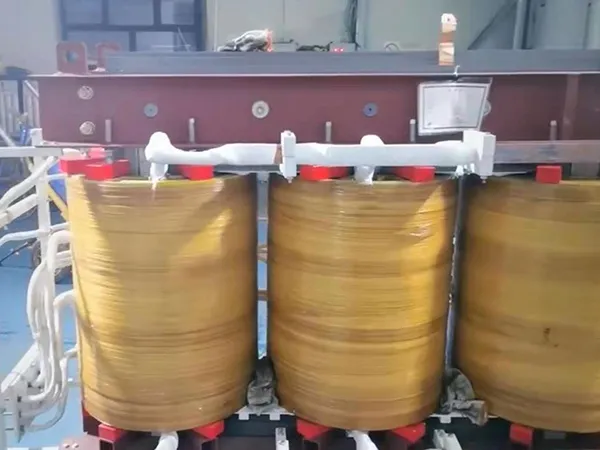

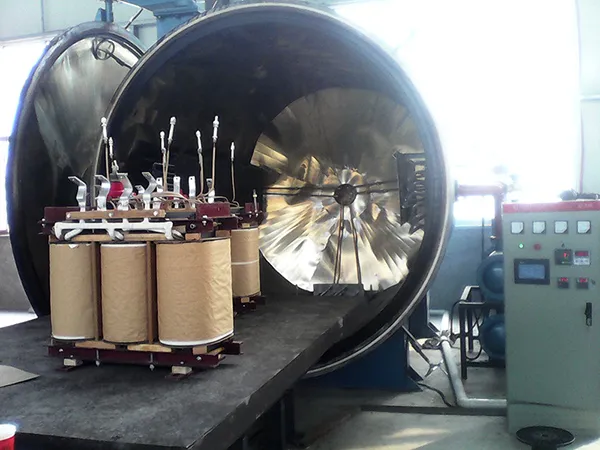

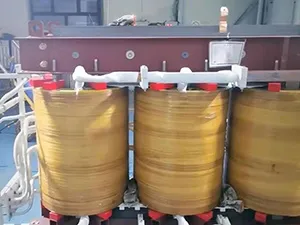

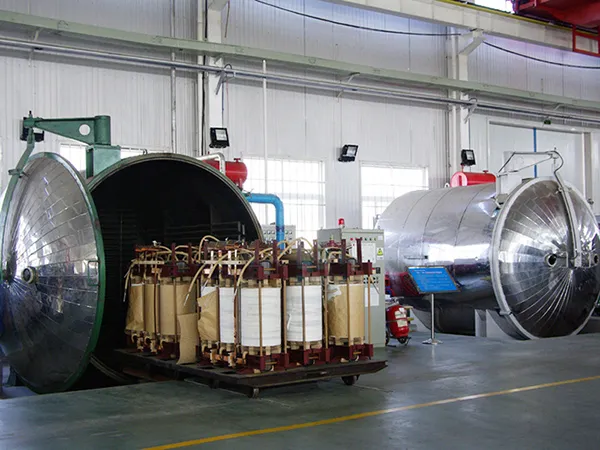

Vacuum drying equipment is mainly applied to dry power transformers of 110KV or below. Transformers are dried using the water vapor evaporated from the product in the vacuum drying tank as the heat transfer medium, through the heating of the product, heat exchanging is carried out. This kind of heating method is similar to kerosene vapor phase drying heating, with good heating uniformity and high heating efficiency.

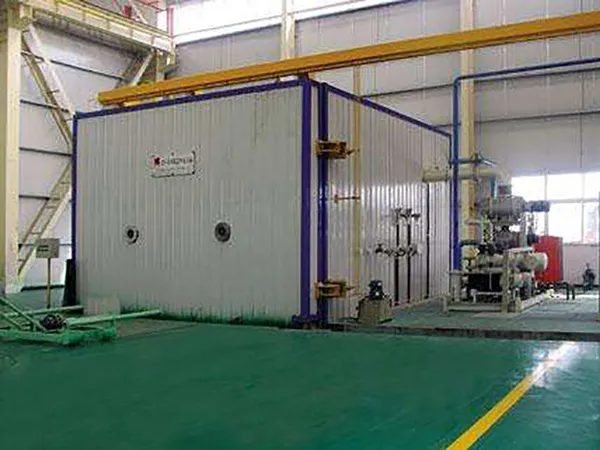

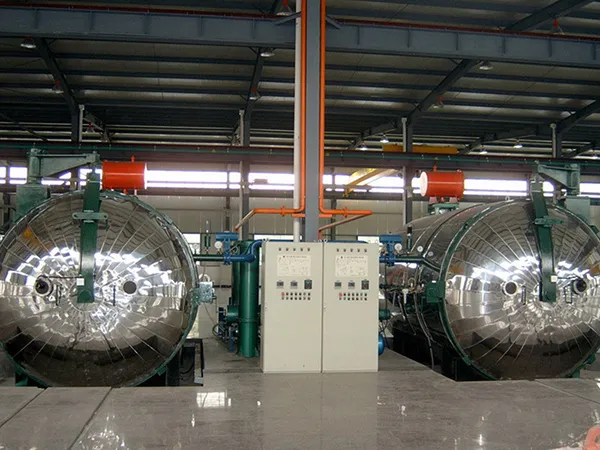

SpecificationsVacuum drying machine consists of exhaust separator, pre-stage pump, intermediate condenser, roots pump, pressure regulating valve, vacuum gauge, electric control, rectangular/round vacuum tank, steam/thermal oil heating system.
| Model | Internal dimensions (L×W×H) | Working temperature | Voltage | Frequency | Heating power | Temperature uniformity | Working vacuum | Weight |
| XHL | 2200×2500×2500mm | 200 | 380V | 50HZ | 36kW | ±2.5 | 40-5000Pa | 4.1t |
| XHL | 2800×2500×2800mm | 200 | 380V | 50HZ | 48kW | ±2.5 | 40-5000Pa | 6.8t |
| XHL | 3200×2000×2200mm | 200 | 380V | 50HZ | 45kW | ±2.5 | 40-5000Pa | 7.1t |
| XHL | 3500×2200×2500mm | 200 | 380V | 50HZ | 54kW | ±2.5 | 40-5000Pa | 8.9t |
| XHL | 3800×2500×2500mm | 200 | 380V | 50HZ | 81kW | ±2.5 | 40-5000Pa | 10.8t |
| XHL | 5200×3000×3000mm | 200 | 380V | 50HZ | 128kW | ±2.5 | 40-5000Pa | 15.7t |
