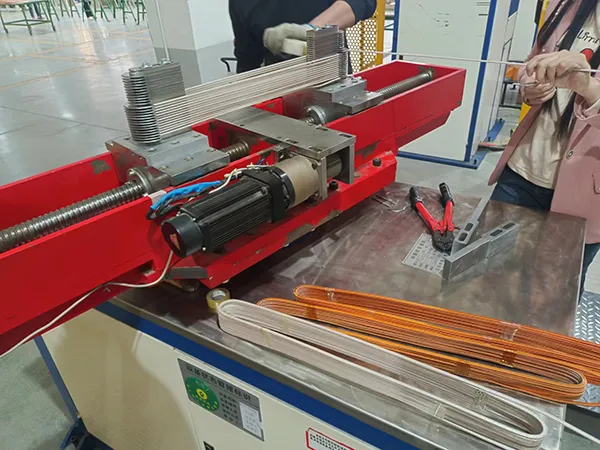

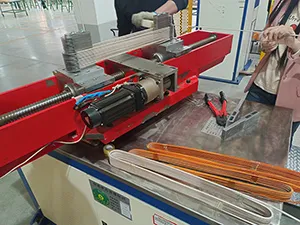

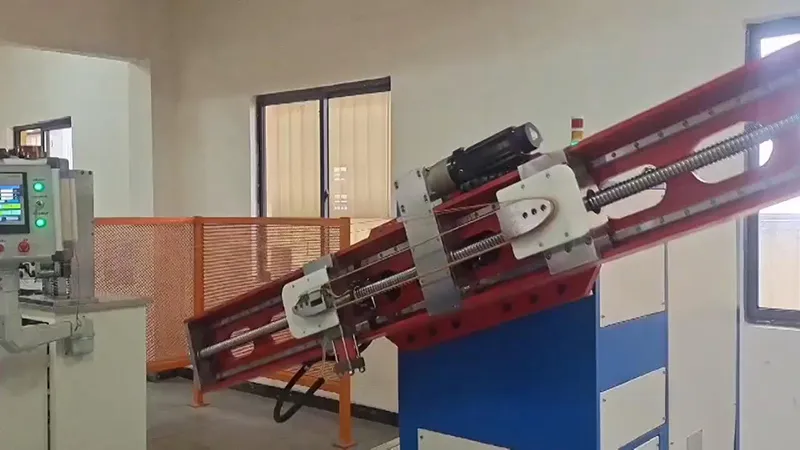

Loop Winding Machine

Loop winding machine is widely used for the production of large and medium-sized motor stator coils and transformer coils.

Loop winding machine is controlled by human-machine interface touch screen PLC system, with both manual and automatic operation modes.

The working pressure and stroke of loop winding machine can be adjusted within the specified range according to your needs, and the stroke can be fixed.

Our loop winding machine can work for a long time with good stability and high production, which is a great solution for mass production.

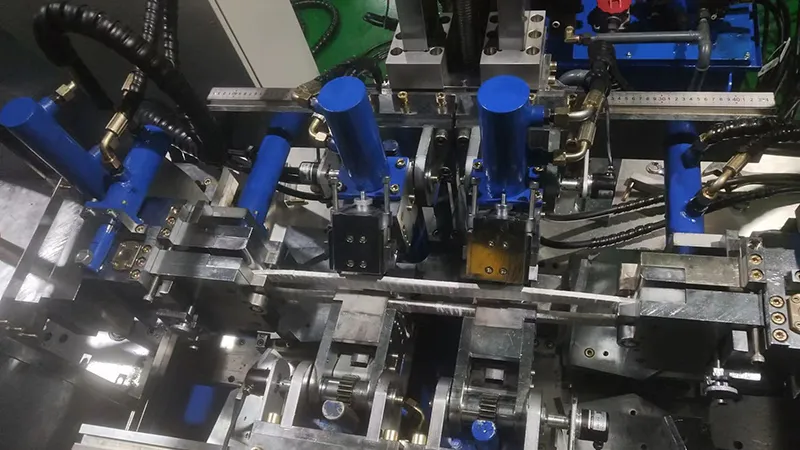

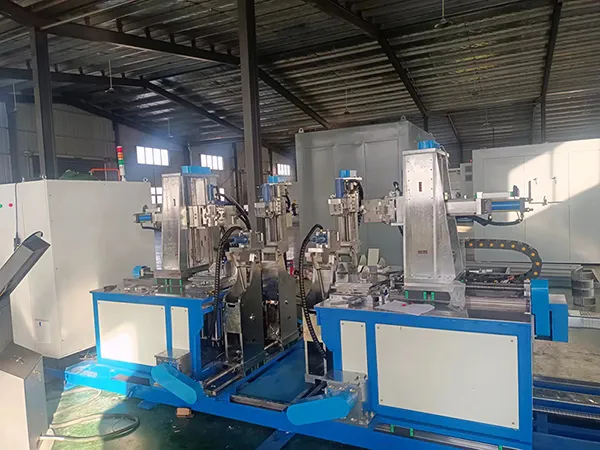

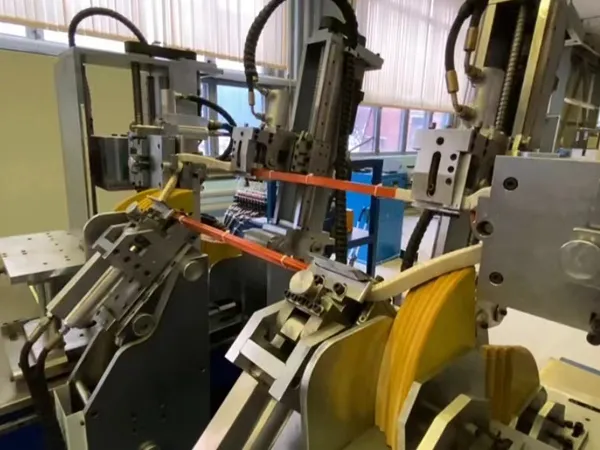

Coil Forming Machine

Coil forming machine is suitable for all types of stator coils. The main drive adopts servo and the clamp adopts hydraulic cylinder and regulating valve to ensure accurate positioning of each workstation. The four-arm stretching is driven by using servo motor and ball screw, thus resulting in an accurate positioning and high precision.

The operations of coil opening and coil evolutes forming can be adjusted seperately, with a high degree of automation and simple operation.

Coil former can work continuously to get higher production efficiency.

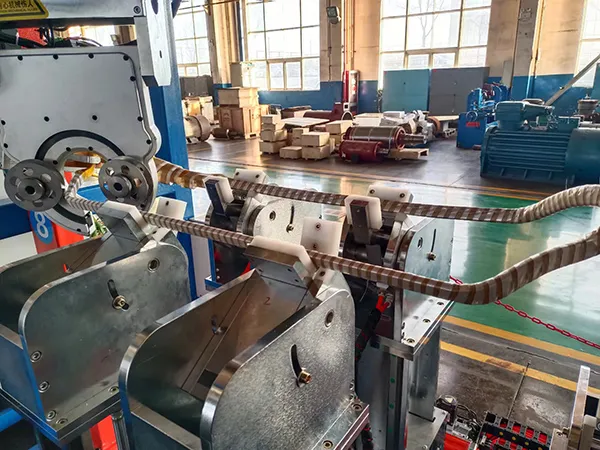

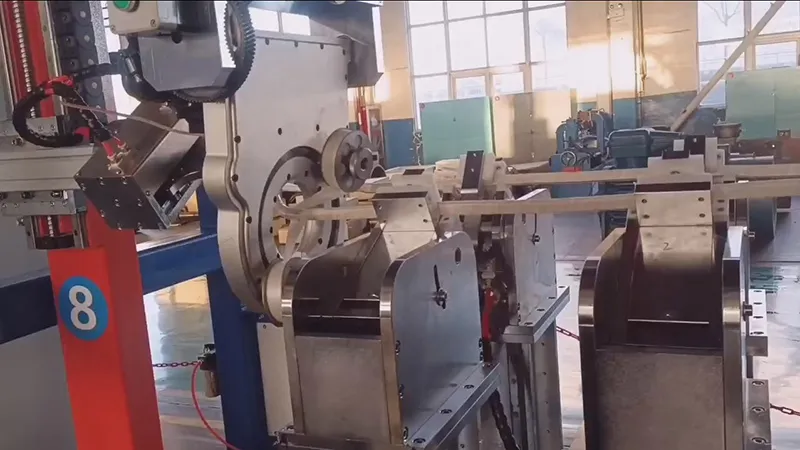

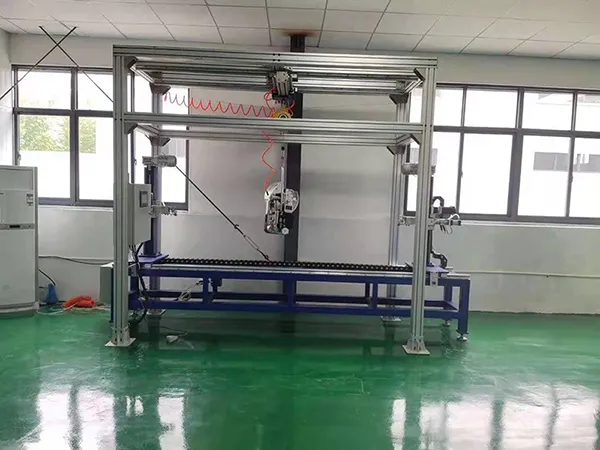

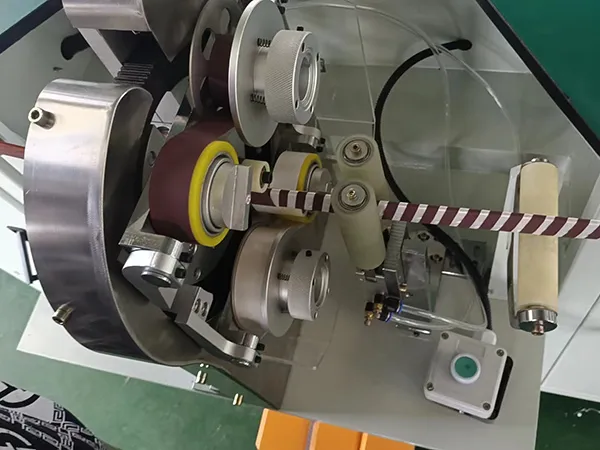

Coil Taping Machine

Except for loading and unloading pre-wound coils, all processes are fully automated.

The working pressure and stroke of coil taping machine can be adjusted within the specified range according to your needs.

The working table is pushed and pulled by a leadscrew, which is convenient for loading and unloading with accurate positioning and reliable press fitting.

CNC coil taping machine adopts servo motor to control stacking rate and coil angle. It has a wide range of applications and can wrap all types of stator coils.

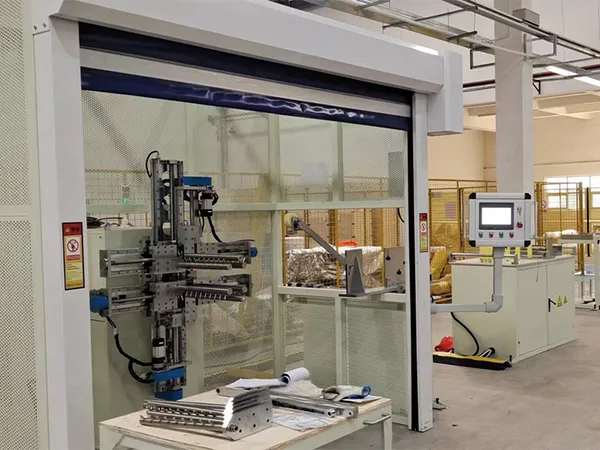

Motor Coil Winding Machine

Motor coil winding machine adopts Japan Mitsubishi PLC system and can be controlled through the control cabinet and touch screen, which has anti-mistake touch protection. All parameters can be input, adjusted and saved via the touch screen.

The wire is unwound by a constant tension. After the previous coil has been wound and the copper wire has been cut, the coil winding machine is able to maintain the tension on the copper wire within the set tension value.

Motor coil winding machine carries out automatic winding process, covering automatic wire loading, wire counting, wire cutting, etc. The winding length can be automatically adjusted to the set length.

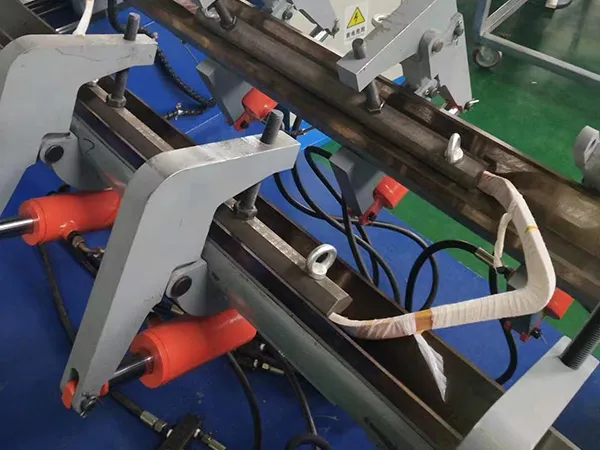

Coil Press

Except for loading and unloading pre-wound coils, all processes are semi-automated.

The control system takes into full consideration of the possible dangers between the various parts of the system, and takes protective measures in many ways.

T22 screw and hydraulic cylinder (with movable head at the top surface contact with the upper mould) are adopted for tightening and fastening the upper mould.

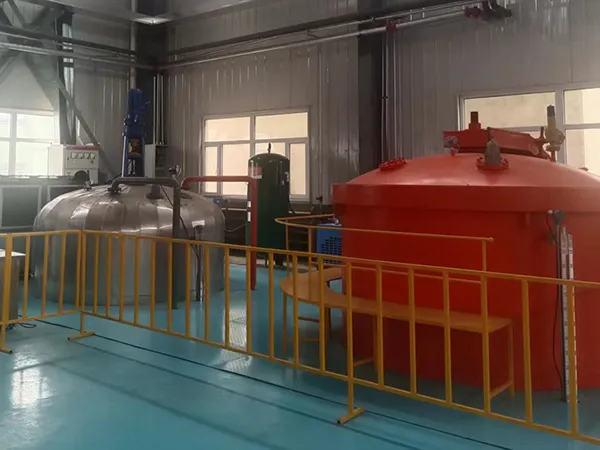

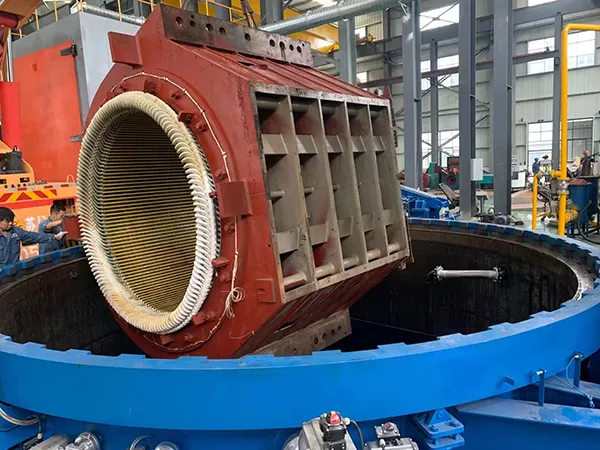

Vacuum Pressure Impregnation System

Vacuum pressure impregnation system is the key equipment for the insulation treatment of high-voltage motors, special transformers and explosion-proof motors, generators, traction motors and other electric components. Thanks to the process of impregnation with high vacuum first and then adding pressure, this VPI system enables the impregnating agent quickly and thoroughly penetrated into the workpieces, which improves the mechanical strength, insulating strength, moisture-proofing and mildew-proofing properties of the workpieces.

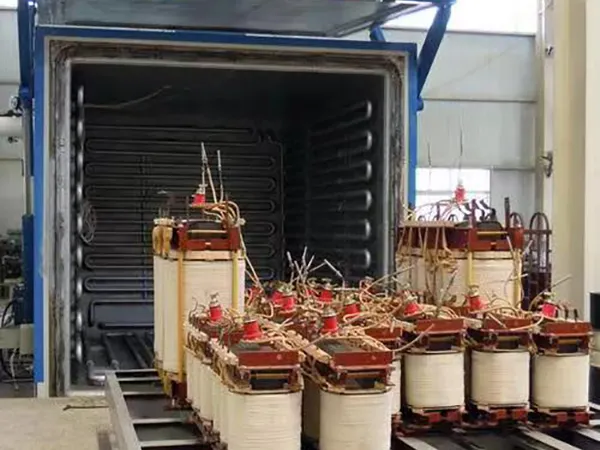

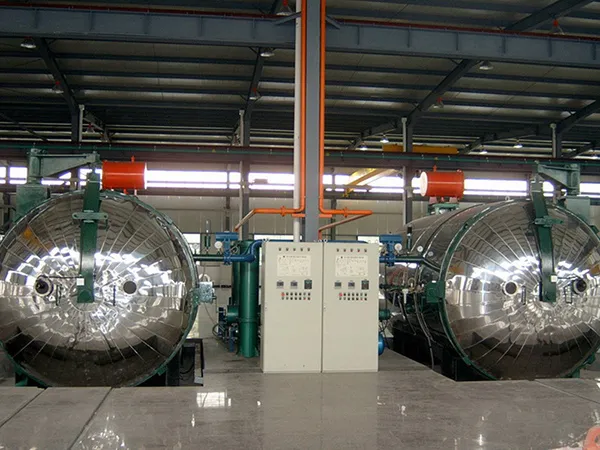

Vacuum Drying Equipment

Vacuum drying equipment is mainly applied to dry power transformers of 110KV or below. Transformers are dried using the water vapor evaporated from the product in the vacuum drying tank as the heat transfer medium, through the heating of the product, heat exchanging is carried out. This kind of heating method is similar to kerosene vapor phase drying heating, with good heating uniformity and high heating efficiency.

The vacuum drying system uses fully automatic control system.

Vacuum drying equipment provides reliable performance, and meets the industry standard.
